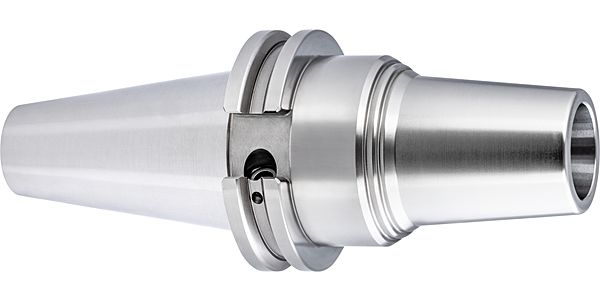

Precision clamping chucks
ISO taper to DIN ISO 7388-1 form AD • central internal cooling up to 80 bar • balancing quality: G 2.5 / 20,000 rpm or U < 1.2 gmm • for tool shanks d1 h6 • for heavy-duty machining as well as HSC and HPC • highest clamping force and stability thanks to mech. tension gearing • actuation torque for clamping force introduction
max. 10 Nm • axial length adjustment • suitable for internal cooling up to 80 bar
max. 10 Nm • axial length adjustment • suitable for internal cooling up to 80 bar
-
Connection code machine side: ISO taper -
Internal cooling: with -
Standard: Company std.
SKU
4301
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
Item is not available
Available in many variants
