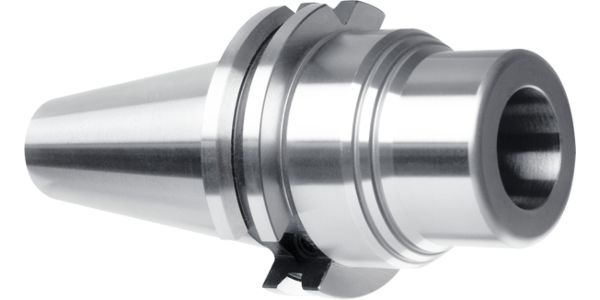

Precision clamping chucks

CAT to ASME B5.50 • CAT40 d4: does not correspond to ASME B5.50 • central internal coolant supply form DU • balancing quality: G 2.5 / 20,000 rpm or U < 1.2 gmm • for tool shanks d1 h6 • for heavy-duty machining as well as HSC and HPC • highest clamping force and stability thanks to mech. tension gearing • actuation torque for clamping force introduction
max. 10 Nm • suitable for internal cooling up to 80 bar
  • Connection code machine side: CAT ASME B5.50
    Connection code machine side: CAT ASME B5.50
    Connection code machine side: CAT ASME B5.50
  • Internal cooling: with
    Internal cooling: with
    Internal cooling: with
  • Standard: Company std.
    Standard: Company std.
    Standard: Company std.
SKU
4243
Available in many variants
