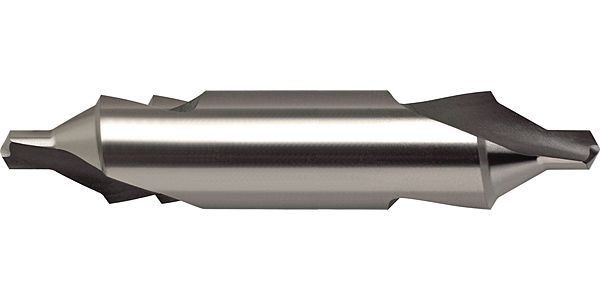

Centre drills HSS / Ø 2.780 mm / ASME B94.11 M / bright / Type: N
-
Connection code machine side: straight shank -
Ø-Thinning: 3.000 -
Standard: ASME B94.11 M -
Surface: bright -
Cutting direction: right-hand -
Type: N -
Point angle: 118 -
Tool material: HSS -
Form: B -
Internal cooling: without
SKU
595 2.780
EAN
4031093464567
To see prices, please log in.
New customers can create a user account HERE or add the desired products to the shopping cart and then send a request for quotation.
Item is not available
Note
Product added to cart.
Loading...
Centre drills HSS / Ø 2.780 mm / ASME B94.11 M / bright / Type: N
Centre drills without flat HSS / Ø 2.780 mm / ASME B94.11 M / Surface: bright / Cutting direction: right-hand / relieved cone 118°
Execution: Web thinning ≥ Ø 2.380 mm • relieved cone • for centre holes form B to US standards
Execution: Web thinning ≥ Ø 2.380 mm • relieved cone • for centre holes form B to US standards
ISO code
| P | Steel, high-alloyed steel |
|---|---|
| M | Stainless steel |
| K | Grey cast iron, spher, graphite/mall. cast iron |
| N | Aluminium and other non-ferrous metals |
| S | Special, super and titanium alloys |
| H | Hardened steel and chilled cast iron |
On the following programme pages you will find for every tool recommendations regarding suitability for the application groups and details of max. tensile strength and harness:
optimal suitability
limited suitability
optimal suitability
limited suitability
- Point grinding
- relieved cone
- Connection code machine side
- straight shank
- Ø-Thinning
- 2.380
- Internal cooling
- without
- Norm
- ASME B94.11 M
- Surface
- bright
- Discount group
- 138
- Type
- 595
- Cutting direction
- right-hand
- Type
- N
- Point angle
- 118
- Material
- HSS
- Angle step 1
- 60.00
- Form
- B
- Angle step 2
- 120.00
- Code no.
- 2.780
- Weight
- 0.014
- No of cutting edges
- 2
- Total length
- 54.000
- Groove length
- 19.000
- Shank Ø
- 7.940
- Nominal Ø mm
- 2.780
- Nominal Ø fractional
- 7/64
- Size
- 14
- Statistical goods number
- 82075060
- Radiuskompensation
- 8300.000
